PRF " PLAZMOPROTEK " is offical distributer Swedish firm ESAB

THE WELDING EQUIPMENT

Of Russian firms and Swedish firm ESAB


Inverter rectifiers Caddy have small weight and fine welding-technical characteristics. The high working voltage allows to use long network cables, that makes these devices irreplaceable at installation works. The rectifiers LHN 140/200/250 automatically increase a current at short closing of an electrode with a welding pool and the built - in regulator of an arc provides droplet transfer and stability of process of welding.


Caddy  LHO 110/150;
 Caddy Professional LHN 140/200/250

Technical characteristics



LHO 110/150

LHN 140

LHN 200/250

Voltage of a network, V/Hz
Electric fuse,
À

Network cable, 0 sg. mm
Max.current at 35% maximum load, À
Max.current at 60% maximum load, À
Max.current at 100% maximum load, À

Range of a welding current, À
Open circuit voltage, V
Weight, kg

230/50-60
16
3õ1,5
110/140
95/110
60/90
3-110/150
90
6,5

230/50-60
16
3õ1,5
140
110
80
3-140
50-75
11

400/50-60
10/16
3õ1,5/2,5
200/250
150/180
115/140
5-200/250
50-75/80
11


These compact inverter rectifiers are intended for tungsten-arc argon (TIG) welding and also for manual metal-arc (MMA) welding both inside premises and on open air. The devices of a series LTN can work on a pulsed current, providing high quality at welding small thickness and also allows to enter into storage four sets of welding parameters. Presence of function " hot start " and opportunity of change of dynamics of the rectifier (" force of arc ") lead MMA welding (manual metal-arc welding) on a completely new level.

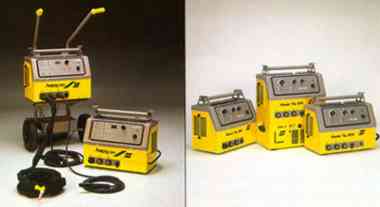

PowerTig LTR 160/200/255;
Aristotig  LTN 160/200/255

Technical characteristics



LTR 160
LTN 160

LTR 200
LTN 200

LTR 255
LTN 255

Voltage of a network, V/Hz
Electric fuse,
À

Network cable, 0 sg. mm
Max. current at 35% maximum load,
À
Max.current at 60% maximum load,
À
Max.current at 100% maximum load,
À
Range of welding current,TIG,
À

Range of welding current, MMA,
À
Open circuit voltage, V
Weight, kg

230/50-60
16
3õ2,5
160
110
80
3-160
3-140
70
23

230/50-60
10
4õ1,5
200
150
115
3-200
4-200
70
23

400/50-60
10
4õ1,5
250
180
140
3-250
4-250
70
23


   The compact welding half-automatic devices ESAB Original 150/180/240 give the user a maximum of advantages carbon-steel metal-arc active-gas (MAG) welding. By these devices it is possible also to weld aluminium and stainless steels. They can be the ideal assistants in garage and on a summer residence, on a farm and in small workshop at repair work.


LKA Original

Technical characteristics



LKA 150

LKA  180-1

LKA  180-3

LKA  240

Voltage of a network, V/Hz
Max. current at 20% maximum load,
À

Max.current at 60% maximum load,
À
Speed wire, m/min
Diameter wire, mm
Unalloyed steel
Aluminium
Cored wire
Intermitted/spot welding
Open circuit voltage, V
Weight, kg

230/50
100

2,5-15
0,6-0,8
0,6-0,8
1,0
0,8-0,9
-
26
36

230/50
113
75
1-15
0,6-0,8
0,6-0,8
1,0
0,8-0,9
/*
33
53

230/400/50
117/126
65/75
1-15
0,6-0,8
0,6-0,8
1,0
0,8-0,9
/*
33
53

400/50
200
120
1-15
0,6-1,0
0,6-1,0
1,0
0,8-0,9
/*
37
56


 The devices LAX with step-adjustment of a voltage are intended for welding in industrial conditions. They concern to a series A10, which gives wide opportunities on integration by different feeder wire, torches and accessories to maintenance of the requirements of the concrete customer LAX can be delivered with the built-in block of water cooling or without it. In the completely closed feeder wire MEK2 and MEK4 can be established 5 -, 15- and 18- kilograms coils.


A10 - LAX 320/380

Technical characteristics



LAX 320

LAX  380

LKA  380W

Voltage of a network, V/Hz
Electric fuse,
À

Network cable, 0 sg. mm
Max. current at 35% maximum load,
À
Max.current at 50% maximum load,
À
Max.current at 60% maximum load,
À                Max.current at 60% maximum load, À
Open circuit voltage, V
Weight, kg

400/50
16
4-2,5
320
-
250
195
16-40
110

400/50
20
4-2,5
-
380
350
280
17-45
143

400/50
20
4-2,5

380
350
280
17-45
157




The power supplies LAW 410 and 510 are intended for metal-arc active-gas (MAG) in heavy conditions both in premises and on open air. They have the fine characteristics at welding both in pure CO2 and in mixes of gases in a wide range of a welding current and allow to use both solid and cored wire. At use of the feeder wire IVIEK 4SP with LAW 410 it is possible to weld aluminium and stainless steel of small thickness in a pulsed current. Radius of a working zone can achieve 65 meters at use of the in-between feed mechanism and longer of cables.

LAW  410/510

Technical characteristics



LAW 410

LAW  510

Voltage of a network, V/Hz
Electric fuse,
À

Network cable, 0 sg. mm
Max. current at 45% maximum load,
À
Max.current at 60% maximum load,
À
Max.current at 100% maximum load,
À
Range of welding current, MMA, À
Open circuit voltage, V
Weight, kg

400/50
25
4õ4
400
350
280
60-400
54-57
200

400/50
35
4õ6
-
500
400
60-500
57-61
225




The compact welding devices LKB 265/320 with the built - in feed mechanism are intended for semi-automatic metal-arc active-gas (MAG) welding of metals of small and average thickness. LKB 265 has the ten-step switch of a voltage and LKB 325 has the 4x10-steps switch. The devices are equipped with the switch of polarity, that allows to use all kinds of a cored wire. They are delivered in complete with the torch PSF with length of a hose of 4,5 m.

LKB  265/320

Technical characteristics



LKB 265

LKB  320

Voltage of a network, V/Hz
Max. current at 30% maximum load,
À

Max.current at 60% maximum load,
À
Speed wire, m/min
Diameter wire, mm
Unalloyed steel
Aluminium
Cored wire
Open circuit voltage, V
Weight, kg

 400/50
265
190
1,9-19
0,6-1,0
0,6-1,0
1,0
0,8-1,0
15-38
92

400/50
-
250
1,9-19
0,6-1,2
  0,6-1,2
1,0-1,2
0,8-1,2
16-40
112


Inverter rectifiers for air-plasma cutting PCM can be easily transferred to a workplace. The wide opportunities on cutting of the majority of kinds of metals, smooth adjustment of a current do these devices irreplaceable, especially for repair work.



PCM-500i, -875i, -1000i

Technical characteristics



PCM-500i

PCM-875i

PCM-1000i

Íàïðÿæåíèå ñåòè, Â/Ãö
Electric fuse,
À
Max.current ,
À/% max.load
Open circuit voltage, V
Air consumption, l/min.
Air pressure, atm.
Thickness of cut (at 700/200 mm/min), mm:
Carbon steel
Mild steel, mm
Stainless steel
Aluminium, kg

400/50
16
35/40
265
120
4,5

9/12
6,5/12
6,5/12
26

400/50
25
60/60
275
150
4,5

18/22
18/22
20/22
40

400/50
16
60/60
275
118
4,5

15/25
15/25
15/25
36


The rectifiers LHF 400/630/800 are designed specially to answer the highest requirements on reliability in heavy conditions of work. The hull has a aluminium-zinc covering ensuring high corrosion-resistance, and all collecting of transformers and switches got out proceeding from their high reliability. The dynamic characteristics of a source, range of a welding current, "anti-stick function" of electrode and large capacity do LHF by the Irreplaceable tool for the enterprises, for which the first-class equipment is necessary. LHF 400 is recommended VNIIST (All-Union Research and Development Standards institute) for welding gas-oil-pipes.


LHF 400/630/800

Technical characteristics



LHF 400

LHF 630

LHF 800

Íàïðÿæåíèå ñåòè, Â/Ãö
Electric fuse,
À
Network cable, 0 sg. mm
Max. current at 35% maximum load,
À
Max.current at 60% maximum load,
À
Max.current at 100% maximum load,
À
Range of welding current, À
Open circuit voltage, V
Weight, kg

400/50
  25
  4õ4
  400
   315
250
8-400
80-87
195

400/50
50
4õ10
630
500
400
8-630
65-72
235

400/50
63
4õ10
800
630
500
8-800
69-76
275


The welding transformers of a type MMA are intended for manual-arc covered-electrode welding on an alternating current mild and low-alloy steels. The adjustment of a welding current is provided with mechanical manual moving of the magnetic shunt of horizontal performance. They are convenient at moving in assembly conditions. A reliable design do them durable and trouble-free in work.




TRANSFORMERS



Technical characteristics



Main voltage, V

Convention welding current, À (ÏÍ%)

Weight, kg

    ÒÄÌ -140
    ÒÄÌ - 180
    ÒÄÌ - 250
    ÒÄÌ - 403
    ÒÄÌ - 411
    ÒÄÌ - 505
    ÒÄÌ - 169
    ÒÄÌ - 181
    ÒÄÌ - 259
    ÒÄÌ - 300


2õ380
1õ220/2õ380
  2õ380
  2õ380
 2õ380
  2õ380
   1õ 220
   1õ220/380
1õ220/3õ380
380

125(15)
180(20)
250(20)
400(60)
400(10)
500(60)
160(20)
180(20)
 2õ380
 300(60)

  28
45
55
150
  80
180
30
  40
 55
55


The rectifiers of a welding type are intended for a complete set of semi-automatic devices of arc welding, for manual-arc-electrode welding on a constant current carbon and alloyed steels for industrial and repair-building-up works. In the rectifier the classical technical decisions are widely used.   Simplicity and reliability of a design, improvement of welding units do work with rectifiers pleasant both for beginning operators and for the professionals.



RECTIFIERS

Technical characteristics

Main voltage, V

Convention welding current, À (ÏÍ%)

Weight, kg

    ÂÄ -131
    ÂÄ - 2õ313
    ÂÄ - 306Ä
    ÂÄ - 306ÄÊ
    ÂÄ - 306Ì
    ÂÄ - 306Ñ
    ÂÄ - 309
    ÂÄ - 313

    ÂÄ - 313*
    ÂÄ - 506Ä
    ÂÄ - 506ÄÊ
    ÂÄÃ - 303 - 3
    ÂÄÃ - 401
    ÂÄÃÈ - 302
    ÂÄÌ - 1202Ñ
    ÂÄÌ - 6303Ñ
    ÂÄÓ - 1250
    ÂÄÓ - 506Ñ
    ÂÄÓ - 601Ñ
  ÂÑ - 300Á(ÁÀ)

  are more detailed...

1õ220/2õ380
  3õ380
  3õ380
  3õ380
 3õ380
  3õ380
    3õ 380
  3õ380
3õ380
3õ380
3õ380
3õ380
3õ380
3õ380
3õ380
3õ380
3õ380
3õ380
3õ380
3õ380
180(20)/130(20)
315(60)
315(60)
315(60)
315(15)
315(60)
250(40)
315(60)
    200(100)
500(60)
500(60)
315(60)
400(60)
315(60)
1250(100)
630(100)
1250(100)
500(60)
630(60)
315(85)

   60
  160
  125
  140
  100
  140
   75
  100
  100
  165
  160
  200
  250
  240
  350
  250
  520
  260
  300
  120



The semi-automatic devices are intended for the mechanized welding of steel hire both in carbonic gas and in argon gas and argon-mixtures of stainless and special steels. The semi-automatic devices are delivered in one-hull performance and in two-hull performance. According to your desire semi-automatic devices can be supplied with various torches both domestic and import manufacture.


COMPLETE SEMI-AUTOMATIC DEVICES

Technical characteristics



    À - 547  with  ÂÑ -300Á and control box

ÌÏÏ - 3 with  ÂÄÓ - 506 and ÁÓÑÏ - 2Ê

ÏÄÃ - 101

ÏÄÃ - 101 - 1Ñ

ÏÄà- 151

ÏÄÃ - 251

ÏÄÃ - 312 - 4 with   ÂÄÃ - 303 - 3

ÏÄÃ - 322 with   ÂÑ - 300Á

ÏÄÃ - 401 with  ÂÄÃ - 401
       Ñèíåðìèã - 401

ÏÄÃ - 421(Àäìèðàëòååö-2) with  ÂÄÓ- 506Ñ

ÏÄÃ - 421(Àäìèðàëòååö-4) with  ÂÄÓ- 506Ñ

ÏÄÃ - 421(Àäìèðàëòååö-2) with  ÂÑ - 300Á

ÏÄÃ - 421(Àäìèðàëòååö-4) with  ÂÑ - 300Á

ÏÄÃ - 421 with  ÂÑ - 300ÁÀ

ÏÄÃÎ - 508Ñ with   ÂÄÓ - 506Ñ

ÏÄÃÎ - 509Ñ with  ÂÄÓ - 506Ñ and ÁÓÑÏ - 05

ÏÄÃÎ - 510 with  ÂÄÓ - 506Ñ

ÏÄÃ - 610Ñ with  ÂÄÓ - 601Ñ

ÏÄÈ - 304 with   ÂÄÃÈ - 302
        Semi-automatic module of a multisystem
           "Soroka"
      are more detailed...


 The mountings of a welding type ÓÄÃ are intended for manual-arc electrode welding (ÌMA) on a constant current of mild and low-alloy steels, all kinds of metals except aluminium and its alloys, and also for tungsten-arc argon welding (TIG) on an alternating current of aluminium and its alloys. A unique opportunity to weld by mounting metals of all marks, to join any thickness without burn, this advantage the professional welder will estimate.


MOUNTINGS  TIG/MMA

Technical characteristics



Main voltage, V

Convention welding current, À (ÏÍ%)

Weight, kg

    ÓÄÃ - 161
    ÓÄÃ - 180
    ÓÄÃÓ - 251 AC/DC
    ÓÄÃÓ - 351 ÀÑ
    ÓÄÃÓ - 351 AC/DC
    ÓÄÃÓ - 501 ÀÑ
    ÓÄÃÓ - 501 ÀÑ/DC
   are more detailed...

1õ220
 1õ220
  2õ380
  2õ380
 2õ380
  2õ380
    2õ 380



150(35)
170(20)
190(35)/275(35)
300(60)/315(60)
250(60)/315(15)
480(60)/500(60)
350(60)/500(60)

 60
60
120
140
  140
155
200





The mountings have high efficiency (three times above, than at oxygen cutting), universality (cut aluminium, cast-iron, ferrous and stainless steels, etc.), allow to receive high quality cut at its low cost and practically are irreplaceable in manufacture of metal constructions, for repair of vehicles, at realization of civil and erection works, for gouging of scrap.

PLASMA CUTTING

Technical characteristics

Main voltage, V

Convention welding current, À (ÏÍ%)

Weight, kg

    ÓÂÏÐ - 0401
    ÓÂÏÐ - 0901
    ÓÂÏÐ- 2001
    details...

      1õ220
 3õ380
       3õ380


40(10)
40(100)/90(60)
200(100)

   45
    150
350

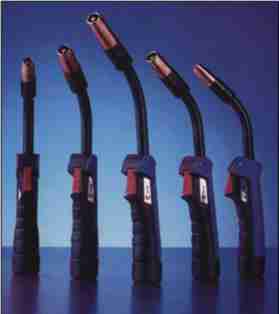

The torches have a reliable design, ergonomic handle that is required for faultless work at various welding operations. Modifications of torches can be equipped of different nozzle outer and connectors. Length of cable is determined by the order (3, 4, 5 m). By the special order any torches for semi-automatic welding can be delivered.


TORCHES MIG/MAG

Technical characteristics

Type of torch

 Kind of cooling

Convention welding current, À

Diameter of a feeding channel internalxoutside., mm

   ÌÂ-14ÀÊ
   ÌÂ -15ÀÊ

   ÌÂ - 24ÀÊ
   ÌÂ - 40



   RD - 36
   RB - 61

 details...



 gas
 gas

 gas
 gas


 gas
water

160
180

250
380


340
500

  1,4õ3,8
1,5õ4,5
2,0õ4,5
2,0õ4,5
2,0õ4,5
2,5õ4,5
3,0õ5,0
2,5õ4,5
2,5õ4,5
2,8õ6,3
3,5õ7,0


WELDING MATERIALS AND ACCESSORIES

Of   Russian firms and Swedish firm ESAB


Today ESAB offers wide scale of welding technologies both materials for building-up and repair of various details. The electrodes OK are recommended a number of branch-wise institutes for application in shipbuilding, at construction of pipelines, in a chemical and petroleum industry. Their quality is confirmed by long-term application at welding oil- and gas-pipelines in severe climatic conditions of Siberia and hot climate of southern areas of the countries of SNG.


Accessories

Concern ESAB releases wide scale of materials for welding and surfacing of various kinds of metals and alloys In particular, high-quality welding electrodes and wire for welding of aluminium, alpax, cast-iron, Cu, bronze, brass, difficult to weld steels, high-alloy steels, etc.

Details...

Outfit

Means of individual protection and the tools of the welder get the increasing importance for improve of productivity and prevention of traumas of the personnel.  Mask of the welder, electrohofders, cables clips tools, clothes and equipment for removal of welding aerosols.

Details...

PSF System 2000

Welding torches PSF 160/250/315/400/500 have air cooling and  PSF 302W/402W/502W/602W - water cooling. The system PSF gives more 2000 various opportunities. The torches with the built - in distance control neck of torches with a various corner of bend concern to them that facilitates welding in difficult places. Also are available a pistol handle and wide set of wearing details. All torches have european-connector.

Details...
